4 Wire Trailer Wiring Color Code. Web how do you wire a trailer with four wires? This will make it easier when it comes time to make your wiring connections.
6 pin trailer connector diagram from groover.sch.bme.hu
Web what is the wiring color code for a 4 pole flat question: Thanks to the elaborate color coding of trailer. You don’t want that to happen, do you?
Thanks To The Elaborate Color Coding Of Trailer.
Figure out what parts need to be replaced and what can stay. 2) the brown color indicates tail lights or possible side markers. This will make it easier when it comes time to make your wiring connections.
Web Remember That Yellow Has A L In It So That Is The Left Side Brake/Turn Signal And Green Has A R In It So That Is The Right Side Brake/Turn Signal.
Web trailer wiring has different color codes assigned for each wire to make it easier to connect the wires. This often happens when a boat trailer is. 3) the yellow color implies a left turn signal light.
Australia Uses Basically The Same Wiring With The Exception For Pin 5 And Pin 2.
In particular, sae (society of automotive engineers) standard wiring differs from the rv industry's standard wiring. Web how do you wire a trailer with four wires? This chart shows what each color code stands for, which makes it.

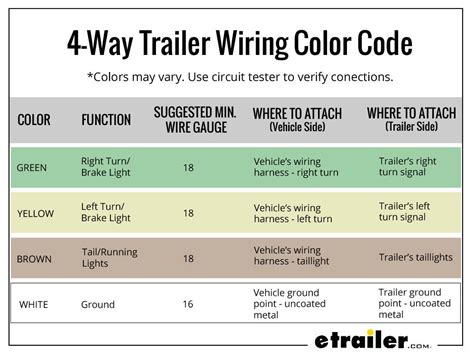

Brown = Taillights Yellow = Left Turn/Brake Green = Right Turn/Brake White = Ground Wire
(vehicle wired for +12v, permanent or via ignition and trailer wired for fog lamps) special case for australia. Usually, if you screw up a trailer’s wiring, you will end up with a blown fuse. Here is an outline of the different roles played by.
Each Color In A 4 Wire Trailer Wire Has A Specific Function.
To understand the color codes better, here is a comprehensive chart. Now before we cover the 4 pin flat trailer wiring diagram. Web 1) the white color signifies the ground.
